50T01 Sleeve regulating valve

Our 810T double-sealed sleeve control valve uses sleeve-oriented, pressure-balanced spool. Compared with 810D series, this series of control valves are sleeve double sealing structure mainly used in the occasion of low leakage requirements, because the two sealing surfaces of double sealing structure are metal seals, so the temperature range used is wider.

File Download

Technical Parameters Structure and materials Specification parameter Quality Assurance

Double seal sleeve adjustment valve, the use of sleeve oriented, pressure balanced spool. Compared with the 810D series, the series of control valve is the sleeve double seal structure is mainly used in the leakage requirements is not high, because it is a double seal structure two sealing surfaces are metal seal, so the use of a wider range of temperature.

Product features
The valve core utilizes the pressure balanced structure, and the opening and closing force can control the working condition of the high pressure difference with the smaller executing agency.Widely used in the medium and low temperature, middle and low pressure pipeline, the fluid control of the medium and low pressure pipeline is widely used. Good sealing performance,allowing the pressure difference. Sleeve oriented,oriented area, good stability,compact structure, can be quickly online replacement valve parts, maintenance efficiency, save manpower and time. Balanced spool structure to ensure that the required actuator thrust minimum.

Design features
Sleeve guide type
Balance internal structure
Can withstand large pressure difference
Double seal structure

Technical parameters
Body form：Straight S type casting valve
Spool form：Balanced double seal sleeve valve
Nominal diameter：DN25～300mm；NPS 1"～12"
Nominal pressure：PN1.6～32.0MPa；CALSS 150～900LB
Applicable temperature：-196～+550℃（Optional）
Connection form：Flange, welding, thread
Flange distance：Meet IEC 60534
Gland form：Bolt pressing type
Sealing gasket：Metal graphite wound gasket
Seal up：PTFE, flexible graphite
Actuator：Pneumatic actuator, electric actuator

Structure and materials

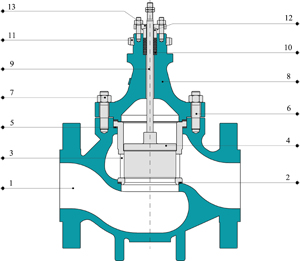

1	阀体Body	WCB	LCB	WC9	CF8	CF8M	CF3M
2	垫片Shim	316+石墨Graphite / FTFE
3	套筒Sleeve	304	304	304	304	316	316L
4	阀芯Spool	304	304	304	304	316	316L
5	垫片Shim	316+石墨Graphite / FTFE
6	螺柱Stud	304	304	304	304	316	316L
7	螺母Nut	304	304	304	304	316	316L
8	阀盖Valve cover	WCB	LCB	WC9	CF8	CF8M	CF3M
9	阀杆Valve stem	304	304	304	304	316	316L
10	填料Packing	PTFE / 柔性石墨
11	锁紧螺母Lock nut	304	304	304	304	316	316L
12	压套Pressing ring	304	304	304	304	316	316L
13	压板Plate	304	304	304	304	316	316L
The above parameters for the standard configuration, soft seal can be specially made to order 6 seal. Valve inner part capable of providing spray welding hard alloy. Conventional materials for carbon steel and stainless steel two, according to the user site conditions custom special material control valve products.

Specification parameter

dn（mm） Inside diameter（in）		25 1	32 1-1/4	40 1-1/2	50 2	65 2-1/2	80 3	100 4	125 5	150 6	200 8	250 10	300 12
(KV) Flow coefficient	Straight line	10	16	25	40	63	100	160	250	400	630	1000	1400
(KV) Flow coefficient	Percent	11	17.6	27.5	44	69	110	176	275	440	690	1100	1500
DN (in)	Travel	Optional flow coefficient CV （★ Standard type ● Recommend ○ Customized）
25 1	16 mm	★
32 1-1/4	25 mm	○	★
40 1-1/2		○	●	★
50 2		○	●	●	★
65 2-1/2	40 mm		○	○	○	★
80 3			○	○	○	●	★
100 4			○	○	○	●	●	★
125 5	60 mm					○	○	○	★
150 6							○	○	●	★
200 8							○	○	●	●	★
250 10	100 mm								○	●	●	★
300 12										○	●	●	★
Pneumatic actuator		HA/B-23				HA/B-34			HA/B-45			HA/B-56
Pneumatic actuator		350 cm²				560 cm²			900 cm²			1400 cm²
Mode of action	Spring range	Metal seal allows differential pressure （Mpa）
Gas opening	20-100Kpa	3.0	2.25	2.25	1.95	2.36	2.04	1.67	1.41	1.41	1.14	0.65	0.55
	40-200Kpa	6.4	6.4	6.4	6.4	6.4	6.4	6.4	6.4	6.4	6.4	1.55	1.4
	80-240Kpa	6.4	6.4	6.4	6.4	6.4	6.4	6.4	6.4	6.4	6.4	4.08	4.08
Gas off	20-100Kpa	1.5	1.13	1.13	0.98	1.18	1.02	0.84	0.71	0.71	0.57	0.65	0.55
	40-200Kpa	4.5	3.38	3.38	2.93	3.54	3.06	2.51	2.12	2.12	1.71	0.8	1.55
	80-240Kpa	6.4	6.4	6.4	6.4	6.4	6.4	5.85	4.94	4.94	4.0	4.08	3.65
Electric actuator		Metal seal allows differential pressure （Mpa）
Thrust（N）	800	6.4	6.4
	2000	6.4	6.4	6.4	5.1
	3000	6.4	6.4	6.4	6.4	5.7	4.76
	5000			6.4	6.4	6.4	6.4	6.25
	6500							6.4	6.4	4.23	3.23
	10000									6.4	6.1	3.31	2.07
	16000											6.0	4.0

Control valve selection
The selection of control valves in industrial control valve selection process is particularly important, due to the various working parameters in different, choose to meet the technological requirements and the best cost control valves need experienced technical staff. Refined Europe (GEROYAL) company based on years of control valve selection calculation experience, independently developed "control valve selection software" can effectively improve the control valve selection efficiency and accuracy. GEROYAL software control valve selection, a code generation control valve comprehensive performance parameters, such as control valves, control valve specifications, calculation of control valve selection scheme comparison for the comprehensive technical documentation requirements of working condition.
case analysis
Control valve product coverage, some special cases often appear in complex condition, we GEROYAL company technical department can provide case control valve structure, materials and accessories such as a full range of your analysis report.
Provide higher implementation standards
As one of the pressure control valve pressure piping components shall be in strict accordance with relevant industry standards in design, production and testing, in strict accordance with relevant industry standards GEROYAL control valve products and design, production and testing according to a higher standard version for customers.
